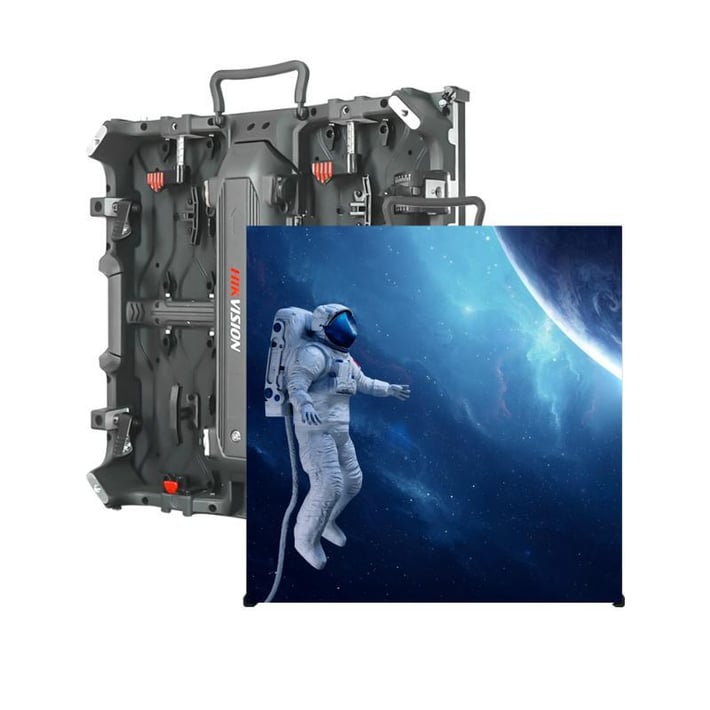

Video wall Hikvision, LED, P 1.8, 300 x 202 cm

LED video walls are professional display solutions for transmitting information or advertising content in a variety of sizes, formats and shapes. They consist of multiple small LED modules/screens mounted on a specially designed frame to create a huge screen in any form.

The LED video wall Hikvision P1.8 offers premium visualization with exceptional detail, smooth image and bright colors shape ideal for business environments, control centers, conference rooms, studios, advertising and corporate installations. With pixel step 1.875 mm and joint resolution 1600 x 1080 px, it guarantees crystal clarity even at close view.

The construction is made of 30 ultralight cabinet DS-D4018CW-2FQ (6 rows x 5 columns) with aluminum caste chassis and front service access, which facilitates maintenance and installation. The special protective coating provides resistance against moisture, dust, corrosion, static electricity and oxidation. the image and reduces excess energy consumption.

The kit includes installation frame Hikvision Brackett and Digital Signage controller DS-DT60P-02HDI12NO/U, which provides easy control of content, multi-zones, synchronization and flexibility at signal sources.

Main parameters of the video wall:

Size: 3 x 2.02 m.

Pixel step: P1.8 (1.875 mm).

General resolution: 1600 x 1080 px.

Offices: 30 pcs (6 x 5).

Size of cabinet: 600 x 37.5 x 29.5 mm.

Office resolution: 320 x 180 px.

Video wall weight: 102 kg.

Stand weight: 44.40 kg.

cabinet material: aluminum die-cast housing.

Service access: front.

Display characteristics:

Brightness: 600 cd/m2 (with dynamic adaptation).

Contrast: 5000-1.

Visibility angle: 160° H / 160° V.

Refreshing frequency: 3840 Hz.
