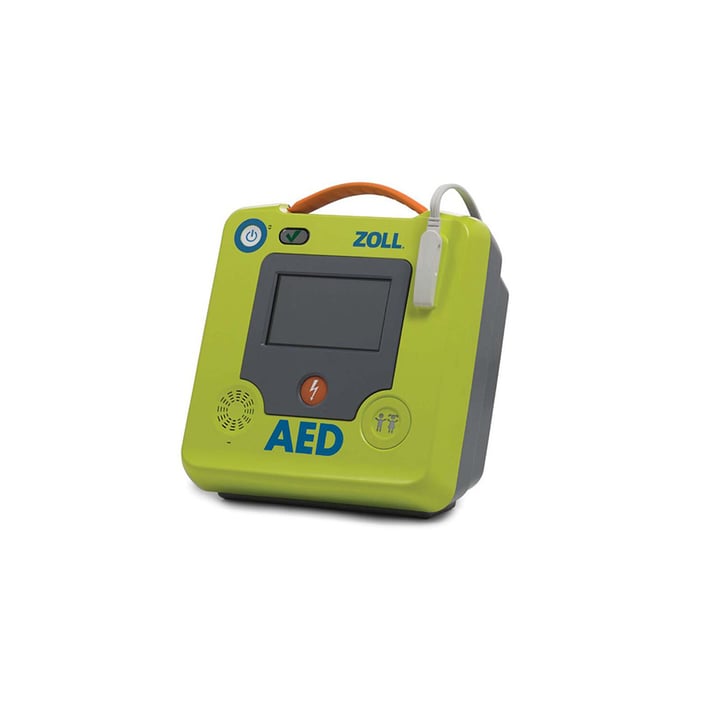

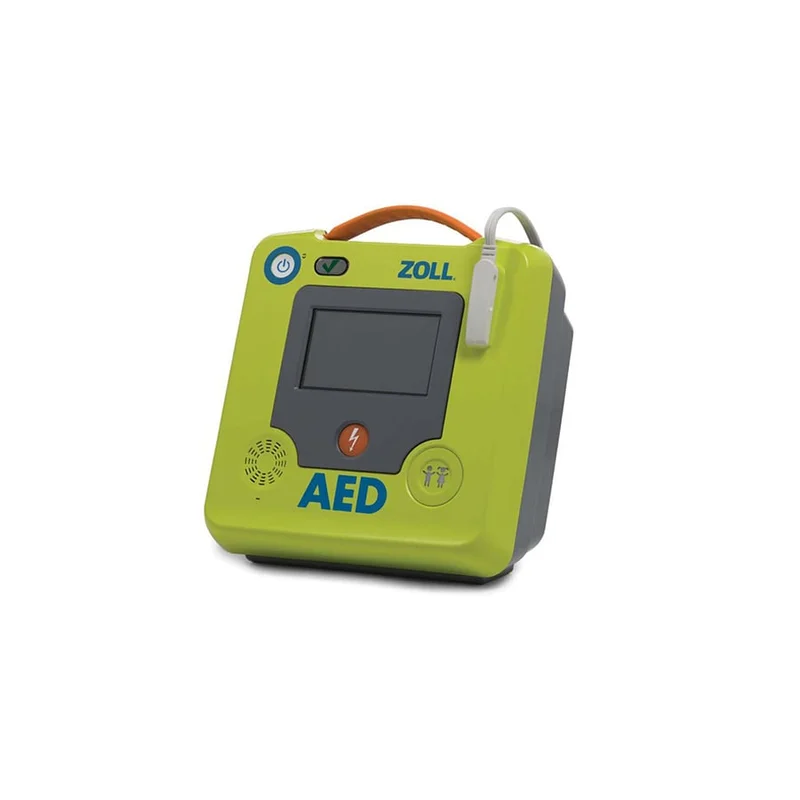

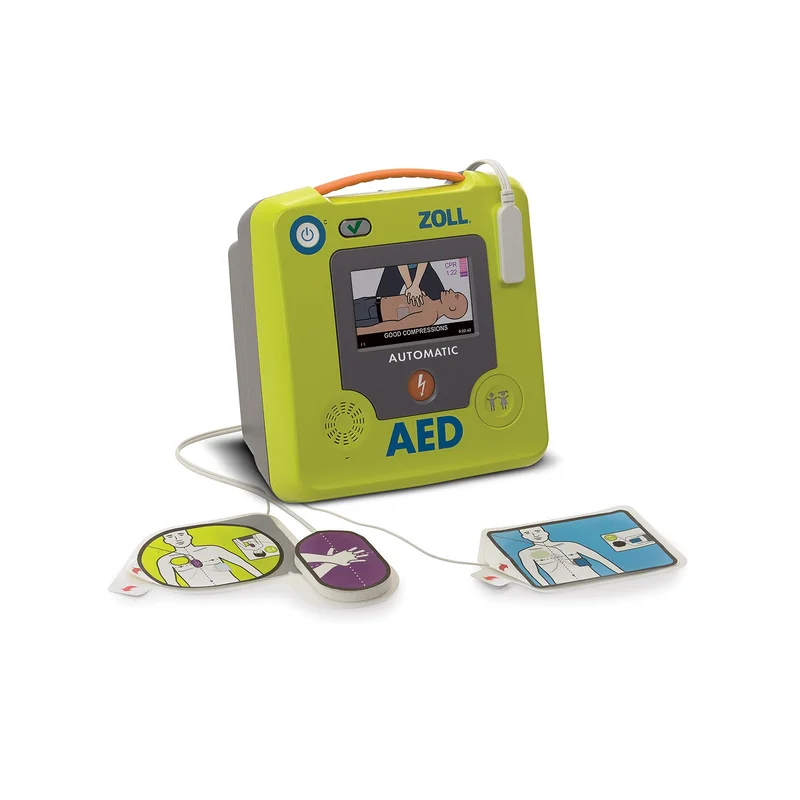

Defibrillator Zoll 3, automatic, external

Automatic external defibrillator ZOLL AED 3 is designed for unexpected characters! It will guide you through the process of performing high-quality CPR and will deliver the heart with potentially life-saving shock. With automatic external defibrillator ZOLL AED 3 and quick action can be prevented tragedy. Help assists and guides first aid providers in performing high-quality CPR according to the latest guidelines for depth and frequency of chest compressions. Innovative design and expanded functions of AED 3 give unexpected characters confidence and knowledge to deal with cardiac arrest. ZOLL AED 3 with its advantages is exceptional an appropriate solution for the implementation of an early degradation programme in a workplace or public place.

Extremely short time before electroshock.

Universal pads for defibrillation for children and adults with innovative design and 5 years of shelf life.

Color display for pictures instructions and voice commands in Bulgarian language.

Protocol: semi-automatic and fully automatic configuration.

Wave Shape: ZOLL Rectilinear BiphasicTM.

Defibrillator retention time: 30 seconds; ZOLL AED automatic model 3: 3 seconds before generating an automatic shock.

Energy choice: factory programmed choice (adults: 120 J, 150 J, 200 J; children: 50 J, 70 J, 85 J).

Charging time: less than 10 seconds with a new battery.

Pause before shock: less than 5 seconds (semiautomatic model) and less than 8 seconds (automatic model) with a new battery.

Rhythms that allow electroshock: ventricle fibrillation with medium amplitude > 100 microvolts and wide complex ventricle tachycardia with frequencies above 150 beats per minute for adults, 200 beats per minute for children. For sensitivity and specificity of the ECG analysis algorithm see the guide for the ZOLL AED administrator 3.

Range of patient impedance measurement: 10 to 300 ohms.

Display format: High Resolution LCD screen and capacitive sensor panel.

Display dimensions: 5,39 x 9.5 cm.
CPR Uni-padzTM defibrillation pads.

Storage duration: 5 years.

Lead gel: polymer hydrogel.

Lead element: tin.

Packing: laminated with laminated film.

Impedance class: low.

Universal for defibrillation of adults and children.
Automatic self-diagnostic:

Self-diagnostic: automatic self-diagnostic, which can be configured for conducting every day or every 7 days. By default: every 7 days. Monthly test of maximum energy (200 J).

Automatic checks on self-diagnostics: battery capacity, state and shelf life, electrode connections and shelf life, EKG and charge / discharge circuits, microprocessor hardware and software, CPR schemes and pads sensor, audio circuits.
Save information:

Recording data and storage: configured by the user for 1 or 2 clinical events in a total of 120 minutes. Includes EKG, impedance measurements, device messages and SBD data.

Data recovery: managed by sensor display, data transferred to USB memory or ZOLL Case ReviewTM via Wi-Fi network.
