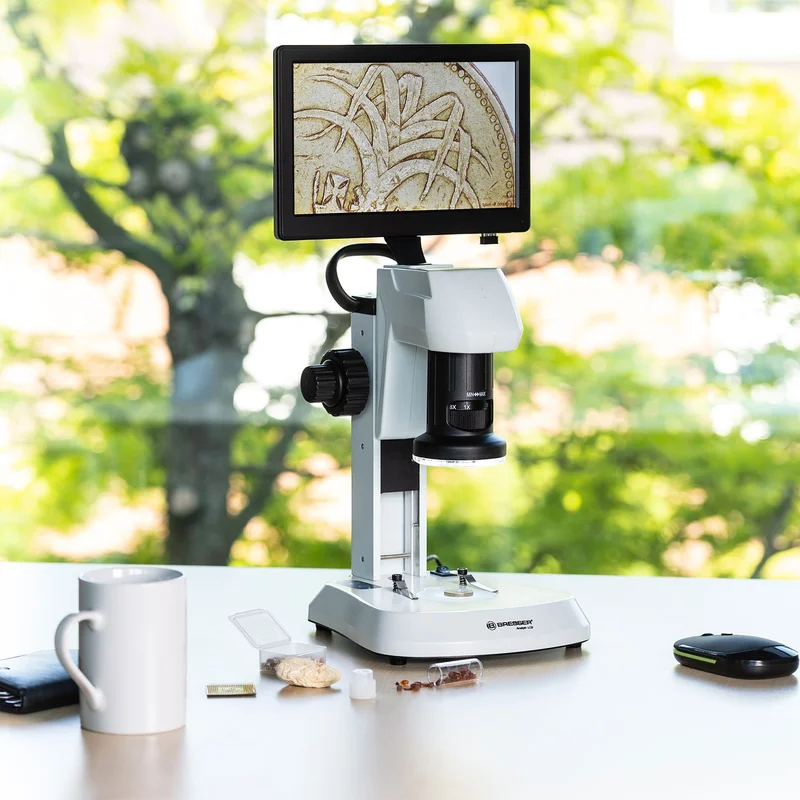

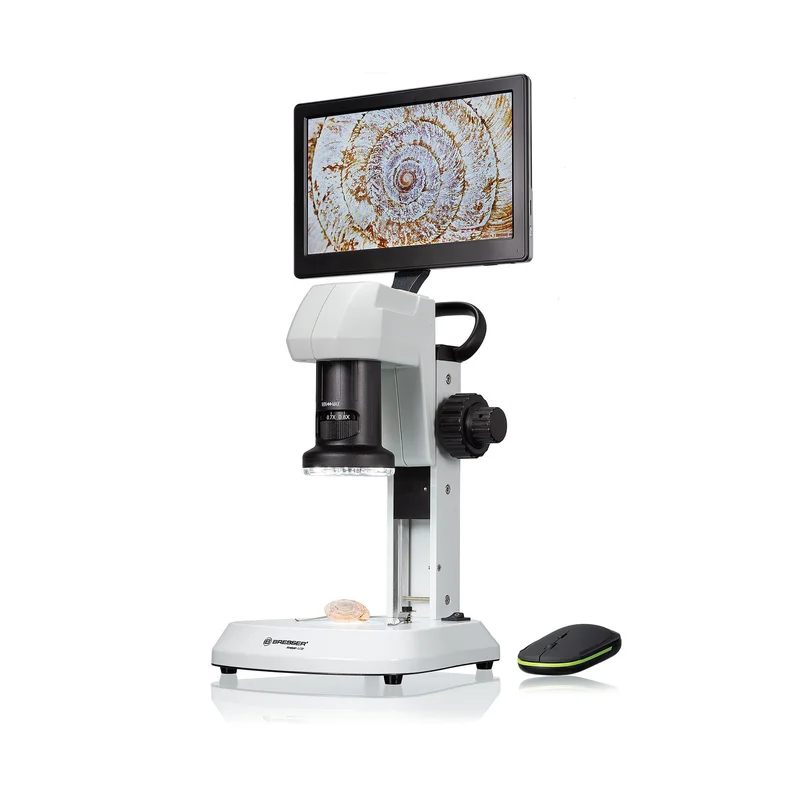

Bresser Microscope Analyth, LCD

With its magnification optics, the microscope Analyth LCD for falling light allows a rapid and optimal increase for quality control of fine structures and small objects.

The 22.5 cm diagonal screen provides convenient monitoring of the sample. The microscope is suitable for everyday use in a workshop or studio.

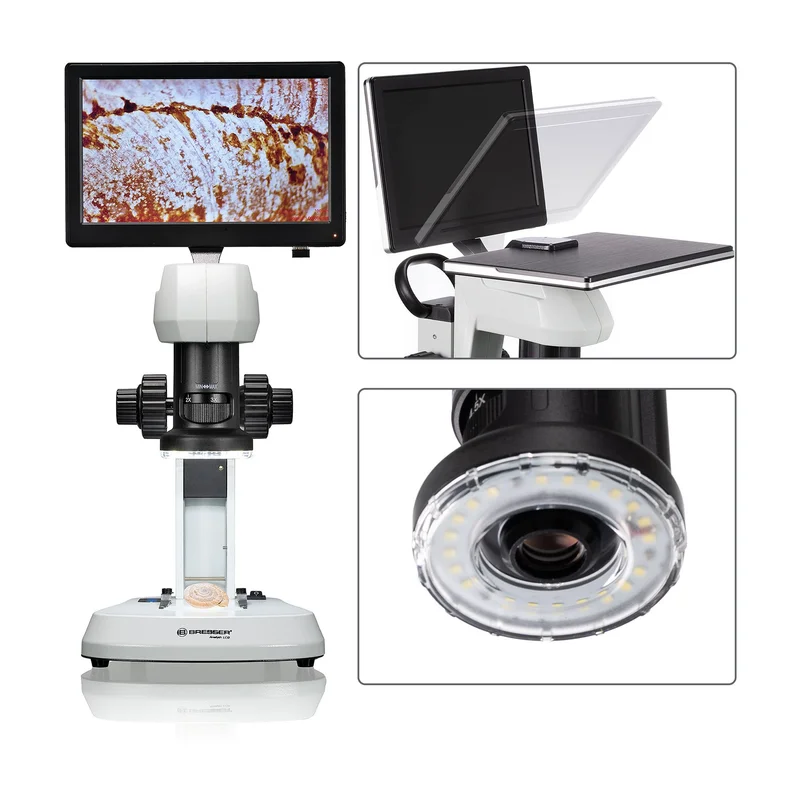

With its ring lighting with 21 LEDs falling light, the device provides even illumination without the shadow of the object.

The monitoring of transparent objects is possible with the built-in illumination of the passing light. Both lighting options can be set separately in 5 levels of brightness and provide optimal illumination of the slide.

With large increases, rough and fine focus provides precision.

Microscopy analyses become easy and effective, even for inexperienced users.

Photos and videos can simply be saved on an SD card. With USB mouse control can be done via a screen menu.

No computer is needed to use the digital microscope.
Characteristics:

Stepless increase (0.7x - 4.5x).

View field at lowest magnification 17.5 x 10.0 mm.

Visual field at greatest magnification 4.7 x 2.5 mm.

Increase built-in screen: approx. 8.2x to approx. 52.7x.

Rough and fine focus.

Bright ring lighting with 21 LEDs for falling light without shadows.

Camera with advanced image sensor Sony IMX335, sensor size 1/2.8."

Display resolution: 1024 x 600 px.

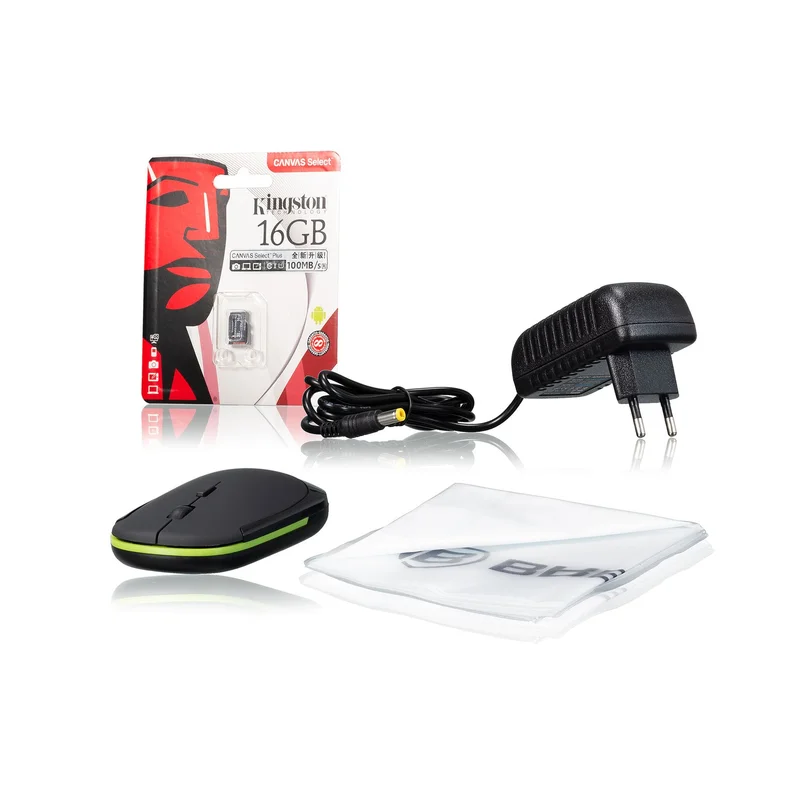

USB mouse.

Dust cover.

Micro SD card (16 GB).

Power supply: EU 12V 2A.
